Abyzz A1200IPU

Special Order Item ONLY

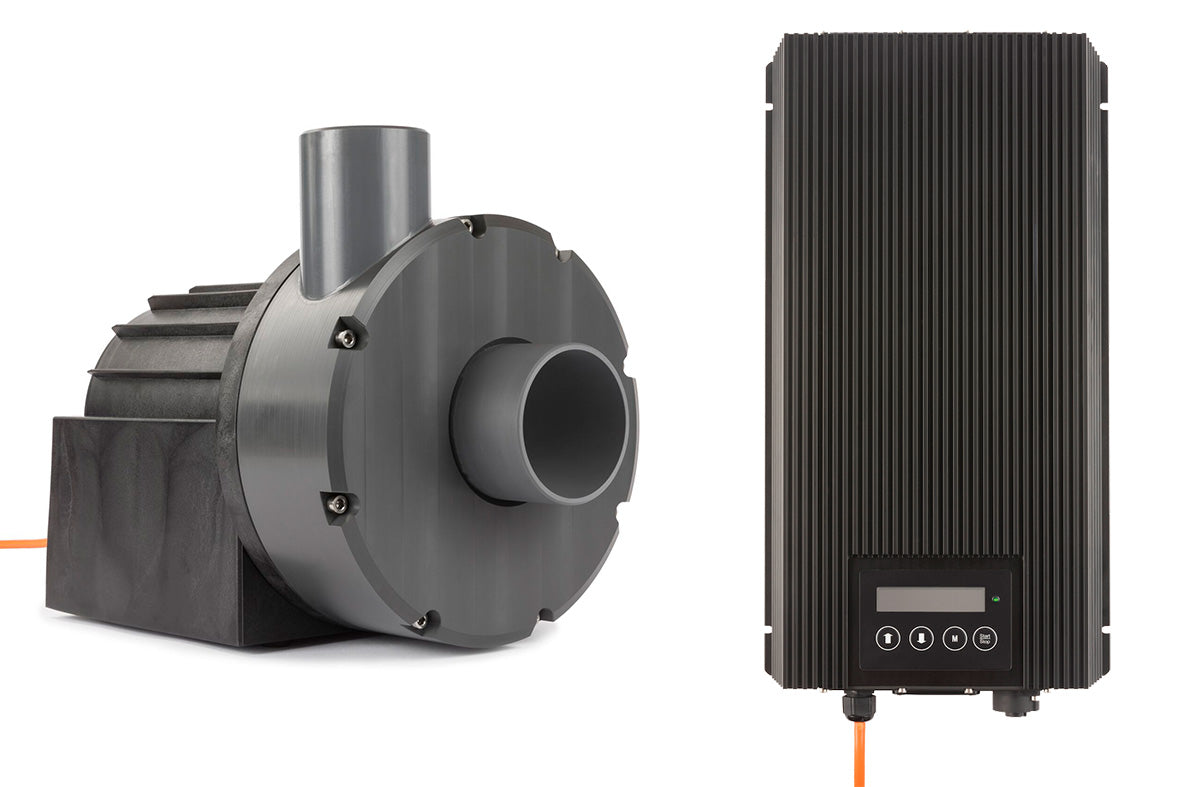

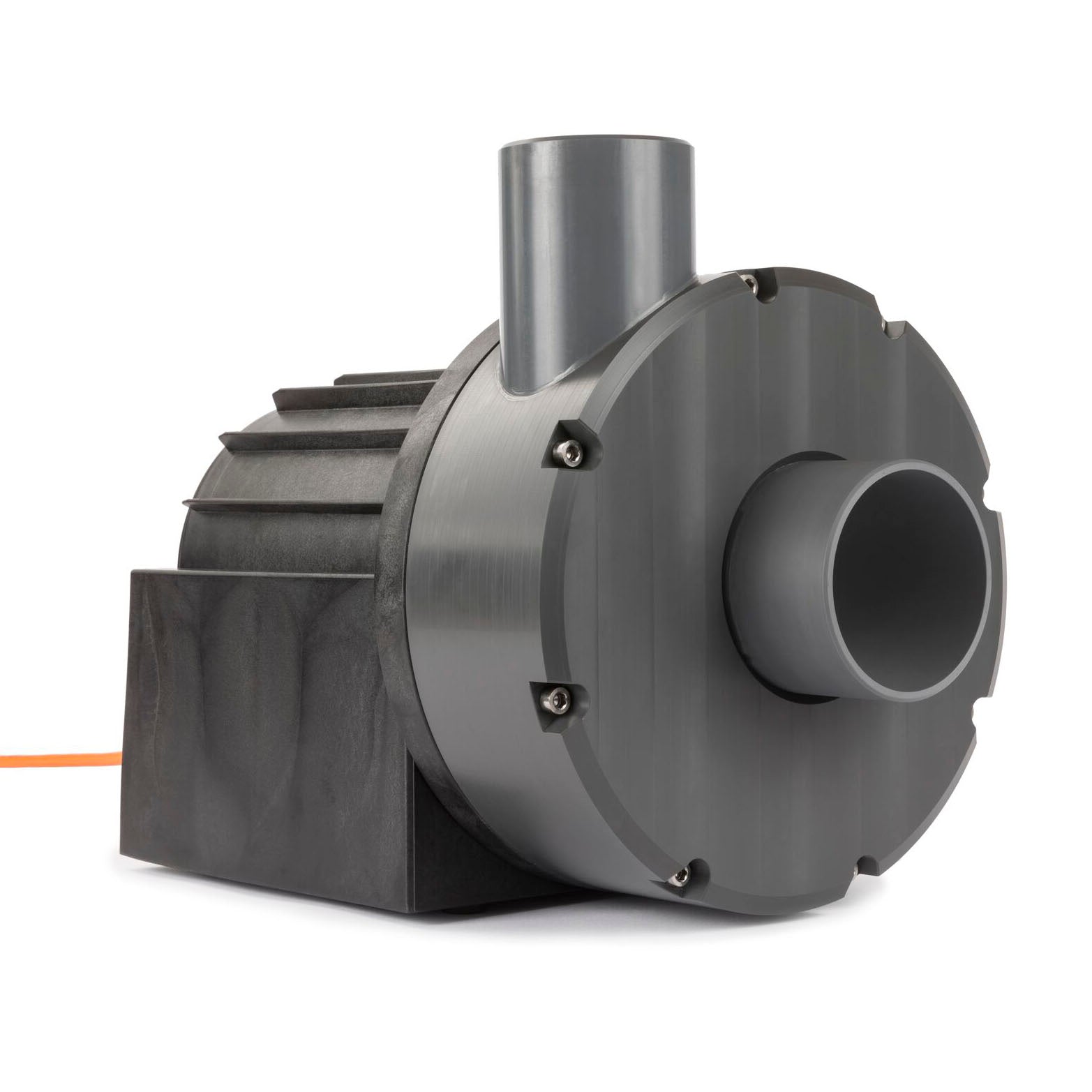

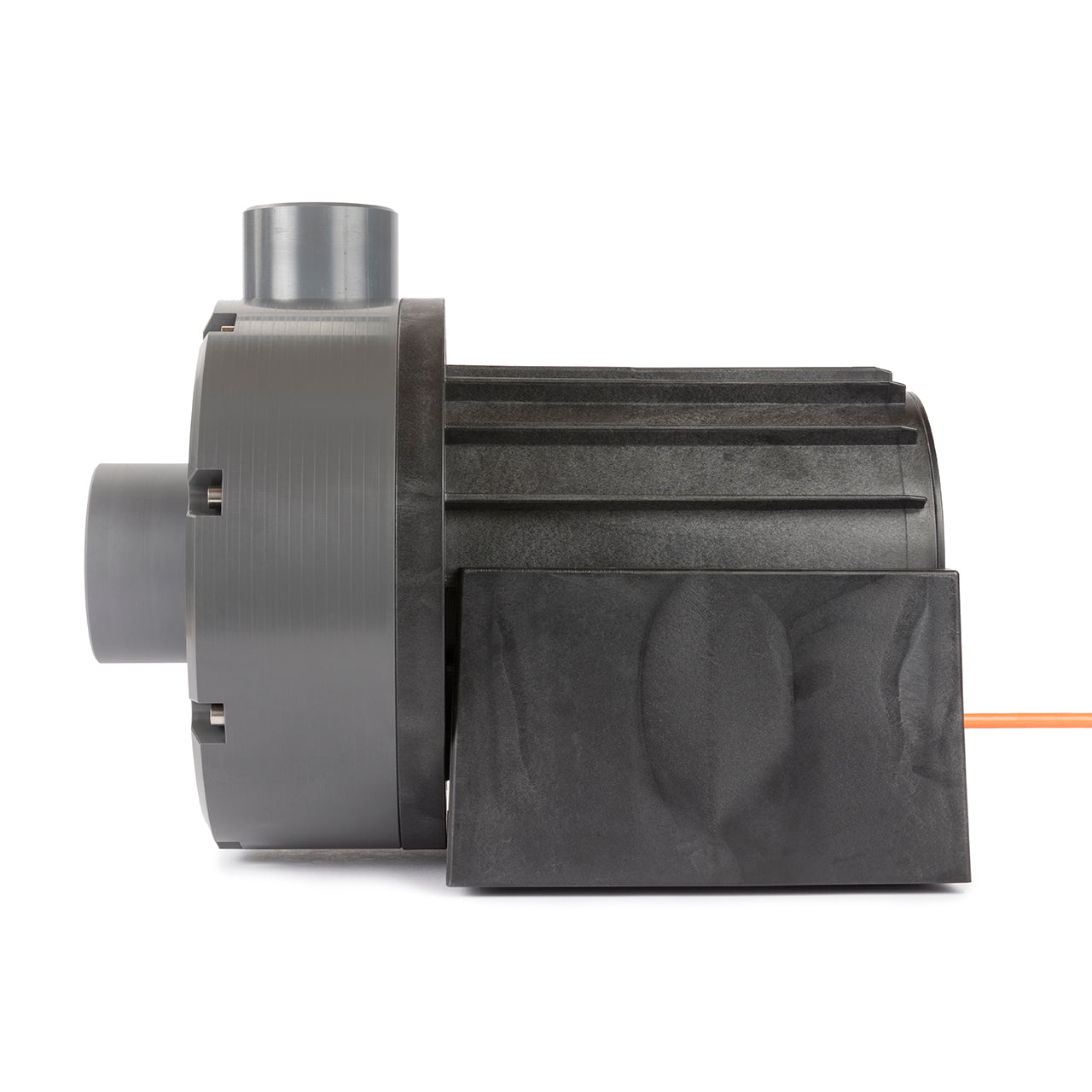

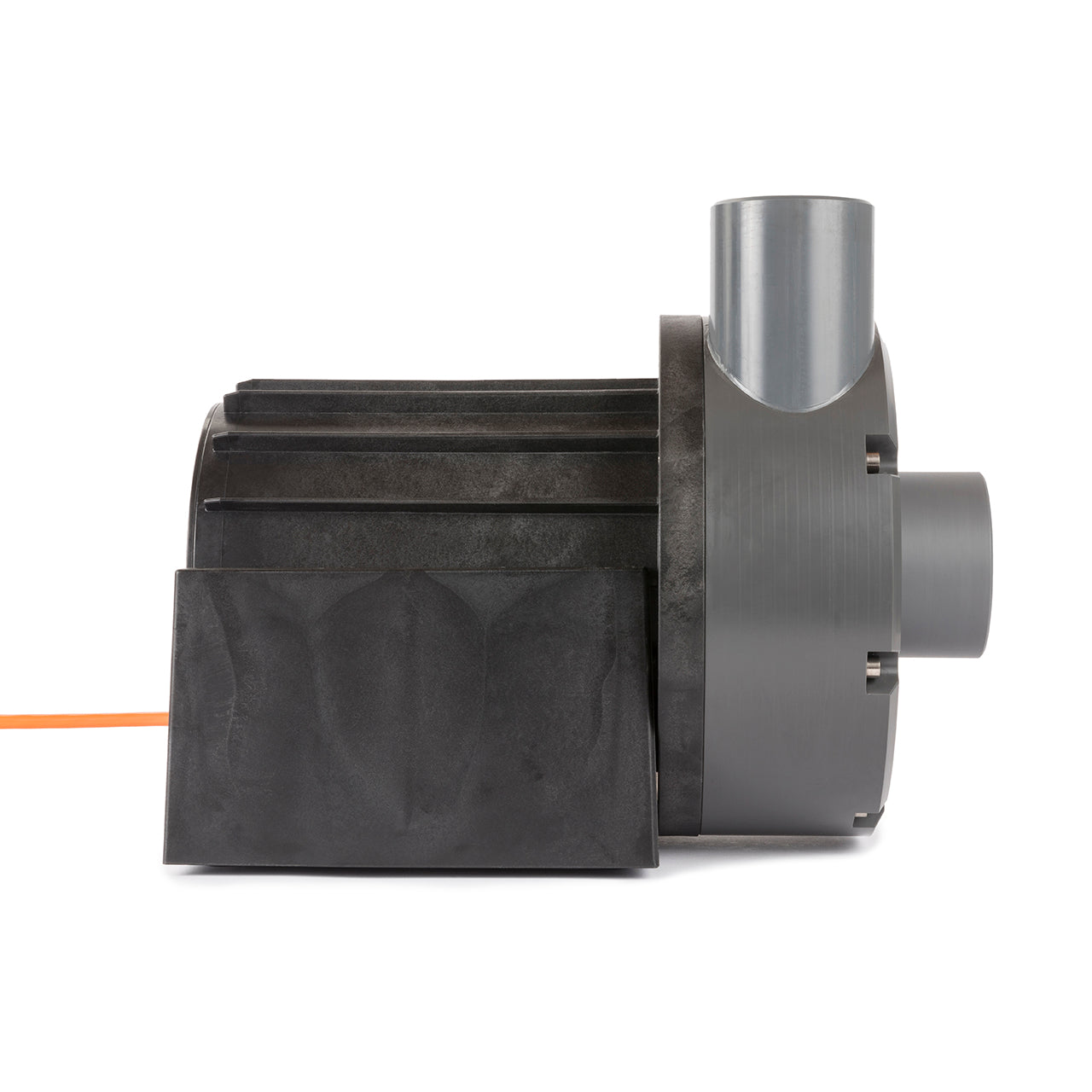

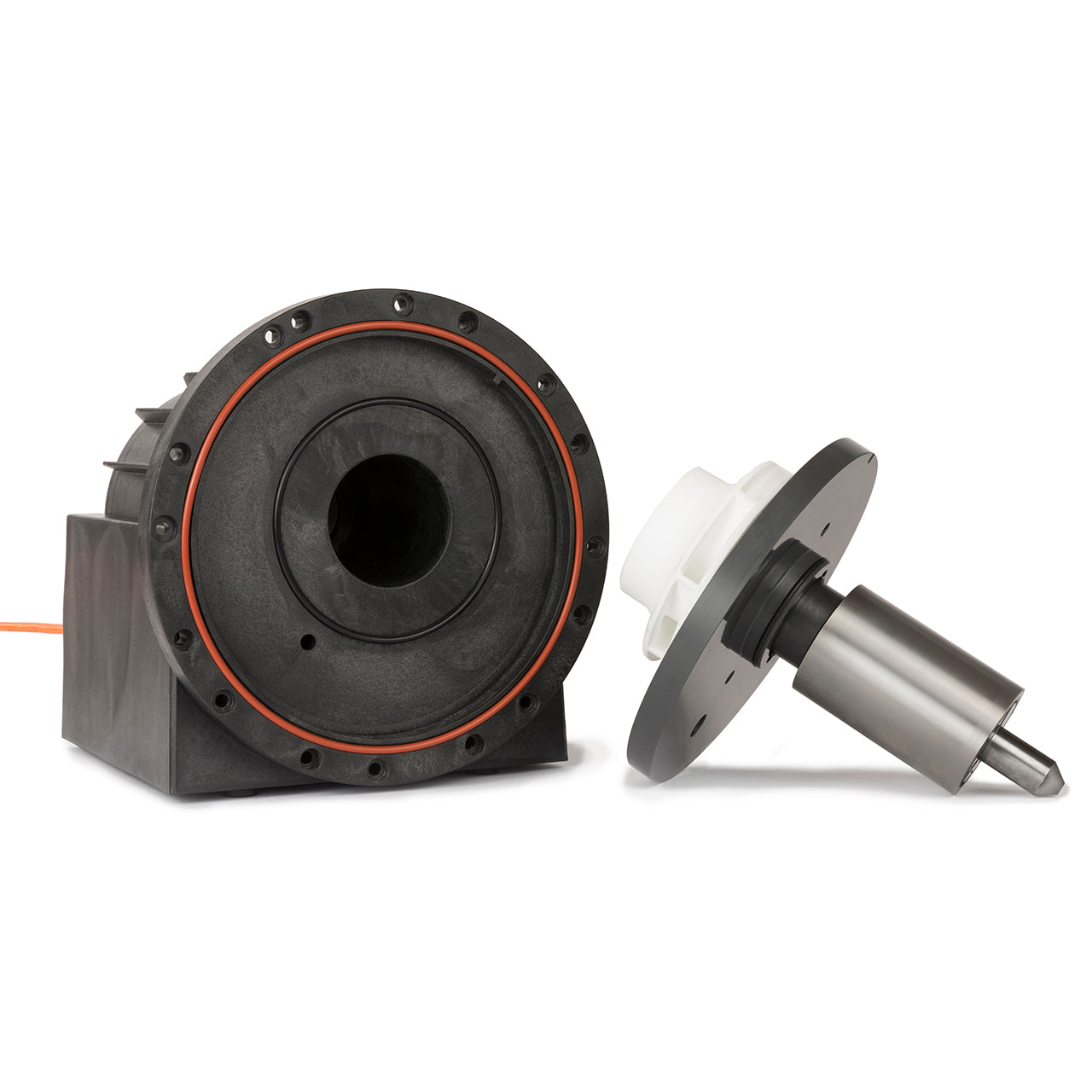

The innovative Abyzz A1200IPU pump with titanium rotor consists of a programmable, high-performance, menu-driven, splash-water protected electronics (driver) and a sinusoidal-commutated synchronous motor (pump).
The high efficiency of the motor makes the pump, in conjunction with the adjustable to your power requirements speed, an energy-saving solution. The integrated bearing rinse offers optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.
The processed materials are designed for a long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec.

Special features

• Adjustable speed range (0 … 100%)
• Programmable control (eg wave and random mode)
• Extensive protection against e.g. Dry running, overtemperature and overcurrent
• Smooth start
• Bus-capable interface for peripherals
• Lockable plug contacts IP65
• Low noise operation

Applications

• Large aquariums and aquaculture facilities
• Streams and pond filter systems

Delivery

• Abyzz A1200IPU MP Cable length 3.0m or 10.0m with range extender

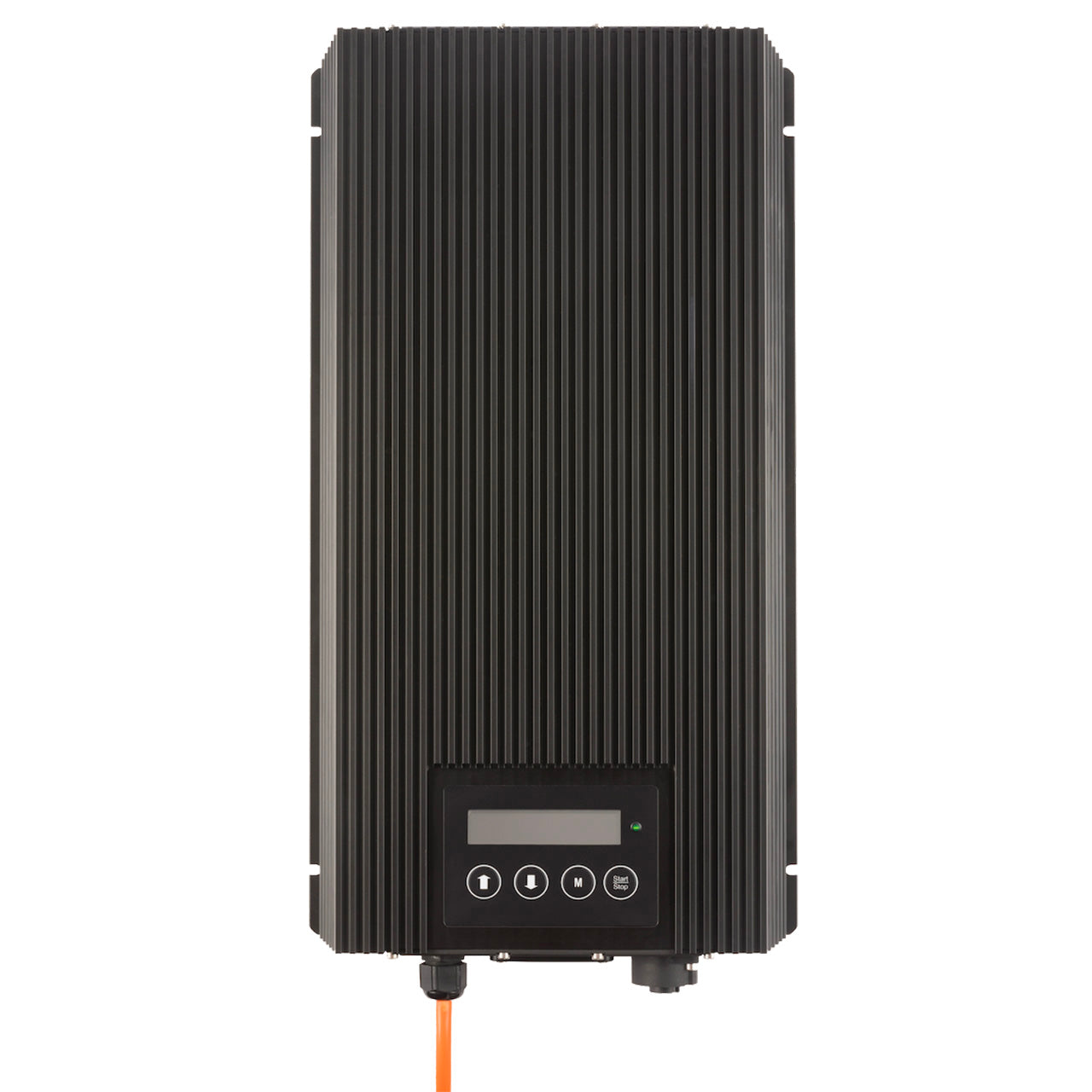

• Driver A1200 IPU splash-water protected
• Power cable (1.5 m) and connecting cable

Installation either submerged or dry in piping, not self-priming.
The inlet / outlet connections are suitable for PVC / ABS adhesive fittings.
