Abyzz A400 / 3m

Abyzz A400 3M US 240vac DC 4,800 GPH Pump

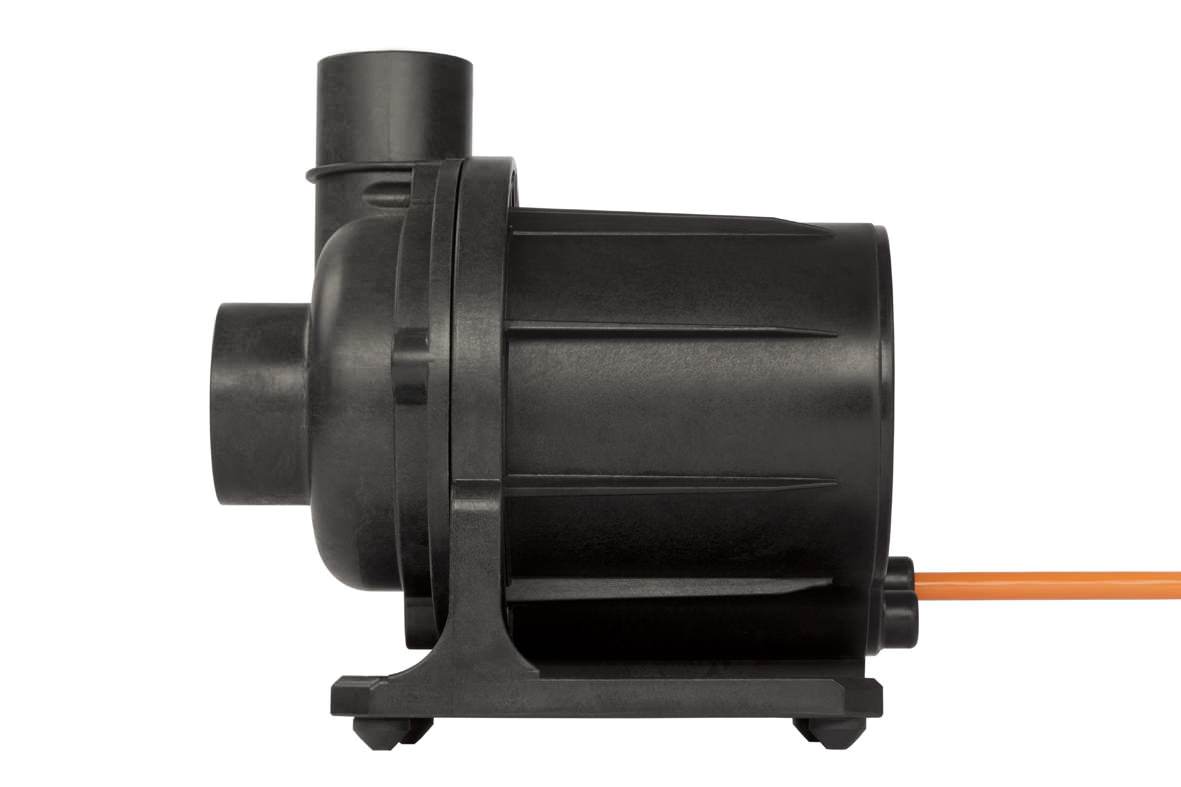

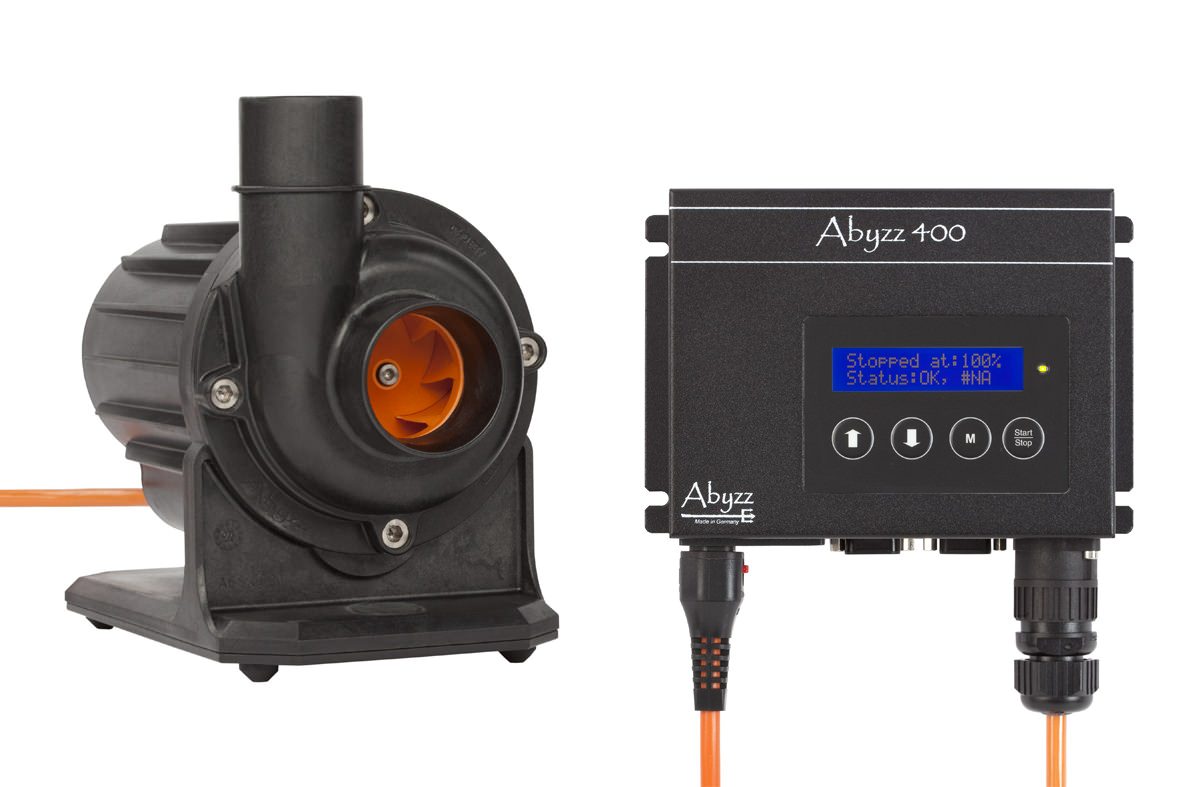

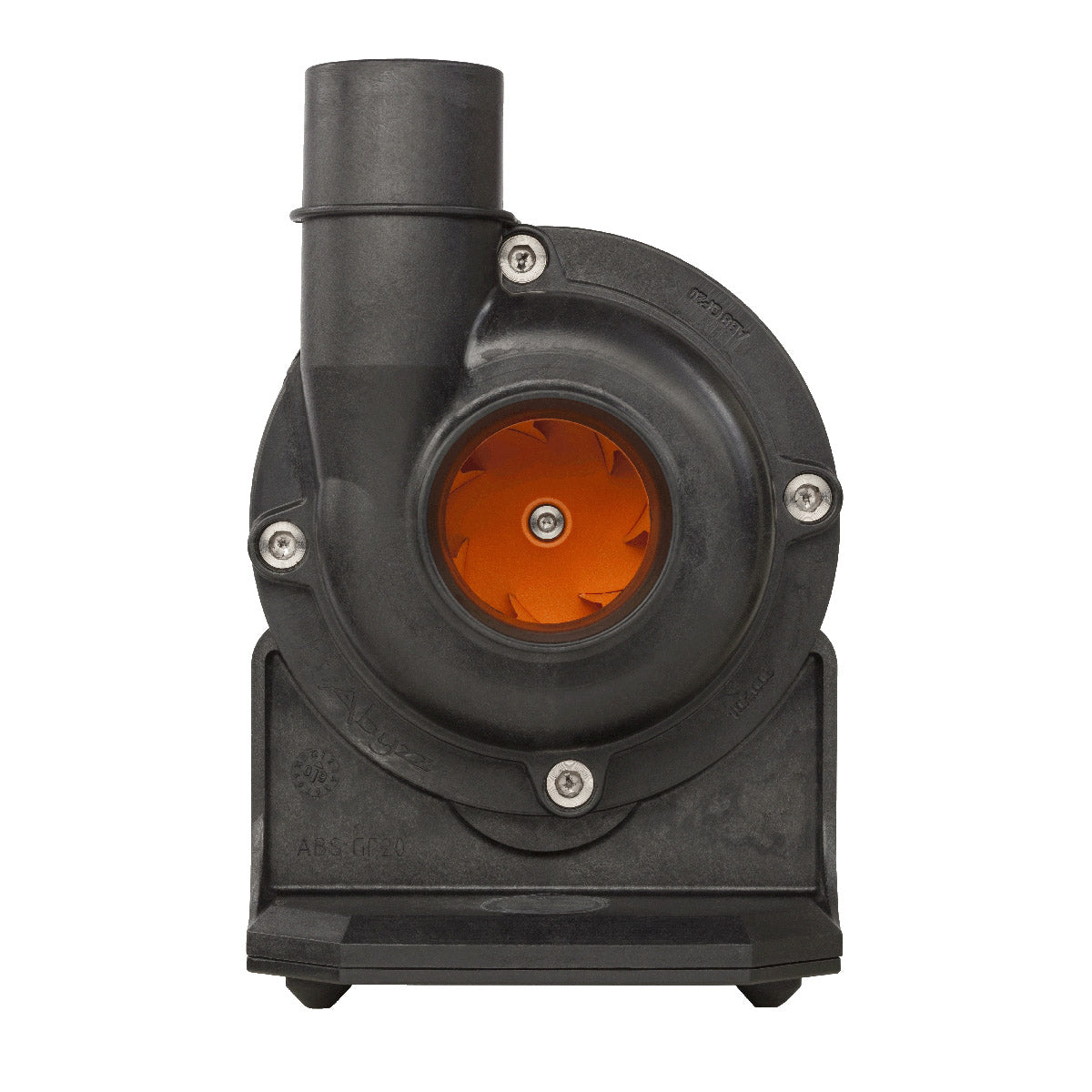

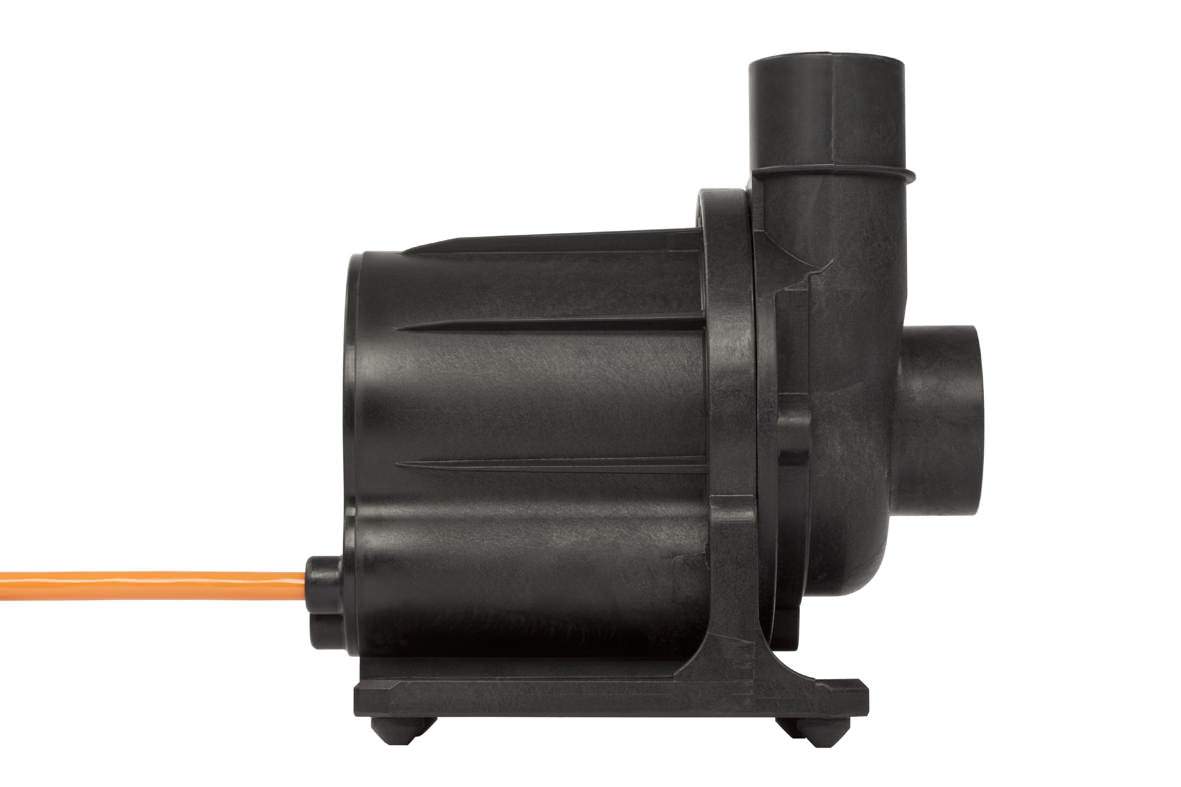

The innovative Abyzz A400 DC Pump is built by a German company that only uses the best parts to make an incredibly reliable, efficient controllable DC pump. Featuring laser welded a titanium encased Neodymium rotor, powerful and programmable menu-controlled electronic driver, and a sinusoidal three-phase synchronous motor, the A400 is in a class of its own in terms of size and performance.

The motor operates at an efficiency factor of over 90% which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power-hungry higher voltage pumps.


The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits - CaCO3). In conjunction with the silicon carbide bearings and special Tungsten carbide shaft, this feature provides for low-maintenance operations.

The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great, ensure a long operational lifetime, and meet the most demanding requirements and highest quality standards.

Applications

• Freshwater and Saltwater Aquaria
• Ponds
• Creeks
• Pools
• Spas
• Hydroculture
• Aquaculture

This product was developed and is manufactured in Germany by Venotec.

Abyzz A400-120M EU DC Pump Specifications

BOOSTMODE^® max flow rate: 6,060 gph / 25,000 lph
Normal mode max flow rate: 4,800 gph / 18,600 lph

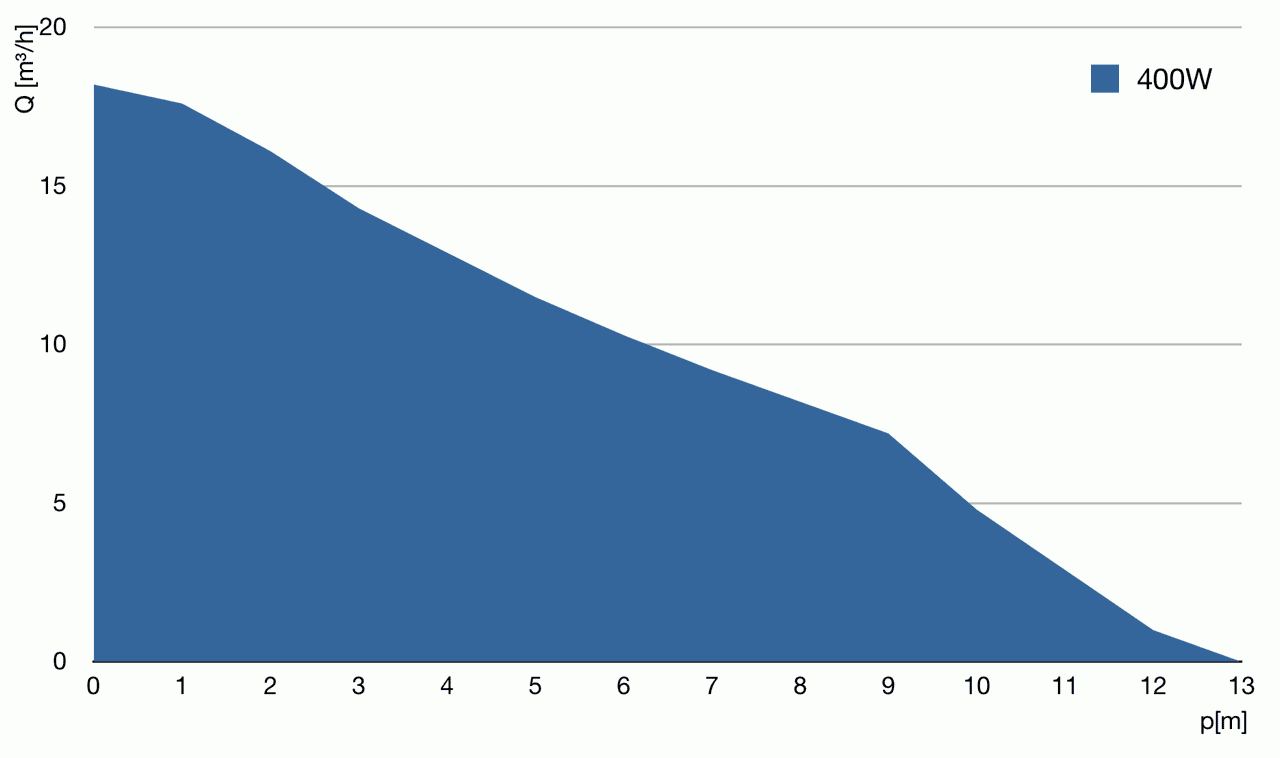

Max delivery height: 30.55ft / 9.4 meters
Rated input: 4-400W
Operating Voltage: 240V
Ambient temperature: 35.5°F - 104°F / +2°C - 40°C
Maximum operating pressure: 17.40 psi / 1,2 bar
Maximum immersion depth: 6.5 ft / 2 meters
Pump cable length: 32.5 ft/ 10m
Inlet/outlet connections: 2”/ 1.5” (50mm/40mm) suitable for PVC/AVB adhesive fittings

Whats Included

• Abyzz A400 pump EU
• 110V 60Hz driver
• 5ft power cable
• Driver/Controller connecting cable: 32.5 ft
• Operating manual

10 Year Warranty^*

In accordance with the implied warranty, we provide a 12-month guarantee. You can also extend the product guarantee period from 12 months to 10 years free of charge within 4 weeks of purchasing the product (date of invoice) after registering your product successfully.

If you have a complaint, please contact us immediately and if needed, send the device back - in its original packaging wherever possible and with proof of purchase - directly to Venotec. Please note that we cannot accept-prepaid deliveries. Such deliveries will be sent back without being processed.

The guarantee covers material, functional, and production faults that can occur when using the product as intended. It does not cover damage of wear out or abrasive wear, transport damage, claims for compensation above and beyond compensation for the product itself, or damage resulting from improper use, negligence, incorrect installation, or interventions and changes carried out by unauthorized persons.

We expressly exclude such scenarios from our scope of liability. Any secondary damages such as the loss of coral, fish, or water damage caused by pump failure or a lack of intake protection are expressly excluded from guarantee and warranty claims. Calcification inside the pump and any resulting damage to the product or motor, damage by use as not intended, and any damage to cables (e.g. chafed cables) are expressly excluded from the warranty. The warranty is invalidated in the following cases: Removed original plugs, use of non-original spare parts, impeller wheel damage resulting from parts sucked into the pump, motor damage caused by the tapering of the intake port or if the pump is operated with a closed or partially closed ball valve in the intake area, motor damage caused by persistent dry running, limescale damage resulting from the improper use of chemicals or the use of unsuitable chemicals, motor damage resulting from upstream external electronic components or damage resulting from damp in the driver.
