Abyzz AFC150IPU

Abyzz AFC150IPU compact – Adjustable flow pump 150W

The innovative Abyzz Flow Cannon AFC150 „compact“ with its high-end design including a titanium rotor unit and titanium housing consists of the pump itself and a powerful and programmable driver. Containing a very energy efficient motor and providing the exact adjustment for your application, it offers a very energy-saving solution.
The integrated bearing flushing provides optimum protection against calcification and, in conjunction with the silicon carbide bearings and special hard metal shaft, ensures low-maintenance operation.
All metal parts are made out of titanium grade 2 and other parts are made out of high quality plastics. This composition ensures a long lifetime, thus granting highest sustainability and lowest carbon footprint. Several mounting options are offered to suit any needs and due to many available mounting points, even a customer specific mounting can be done very easily. The special prop design and a well designed hydraulic lets the pump operate with almost no noise or vibration. The integrated flow straightener provides a laminar and powerful water movement. Easy programming (as in any Abyzz pump) and the possibility to link to external controllers offers a wide field of application.
The materials used are designed to have a long lifetime and meet the highest requirements and quality standards. This product is developed and manufactured in Germany by venotec.

Special features

• Variable speed range (-70.0 – 100.0%)
• CW and CCW operation
• Precise speed adjustment in steps of 0.1%
• Integrated programming to generate waves,
  ursts and random flow patterns with additional BOOSTMODE to override actual programming (MCFS – Menu Controlled Flow Sequencer)
• SELF – Safety Extra Low Voltage (12V motor supply)
• Comprehensive safety functions, such as dry run warning, temperature alert, overcurrent protection, speed zero alert
• Soft startup and dynamic control
• Auxillary port for peripheral devices (e.g. interfacing to external controllers)
• High quality IP65 motor cable connector
• Low noise operation
• Multicolor background LC display
• Splashwaterproof driver (IP65)
• Wide range input with active power factor correction
• Optimized heat sink design

Applications

• Freshwater and saltwater aquaristics
• Creeks
• Water features
• Commercial applications

Technical data

Mounting only submersed, minimum submersion depth 0,4m.

• Flow (nominal): 54.000 l/h (238 gpm)
• Flow (max.): 60.000 l / h (264 gpm)
• Pump ambient temp.: +1° C… 50°C (35…122°F)
• Driver ambient temp.: +1° C… 30°C (35…86°F) (without additional cooling)
• Max. discharge speed: 4 m/s (12 ft/s)
• Power consumption: 4 … 150W
• Operating voltage: 100… 240V
• Operating frequency: 50… 60Hz
• Maximum immersion depth: 2,5m (8ft)
• Cable length (pump): 4m (13ft) or 7m (23ft)

Delivery

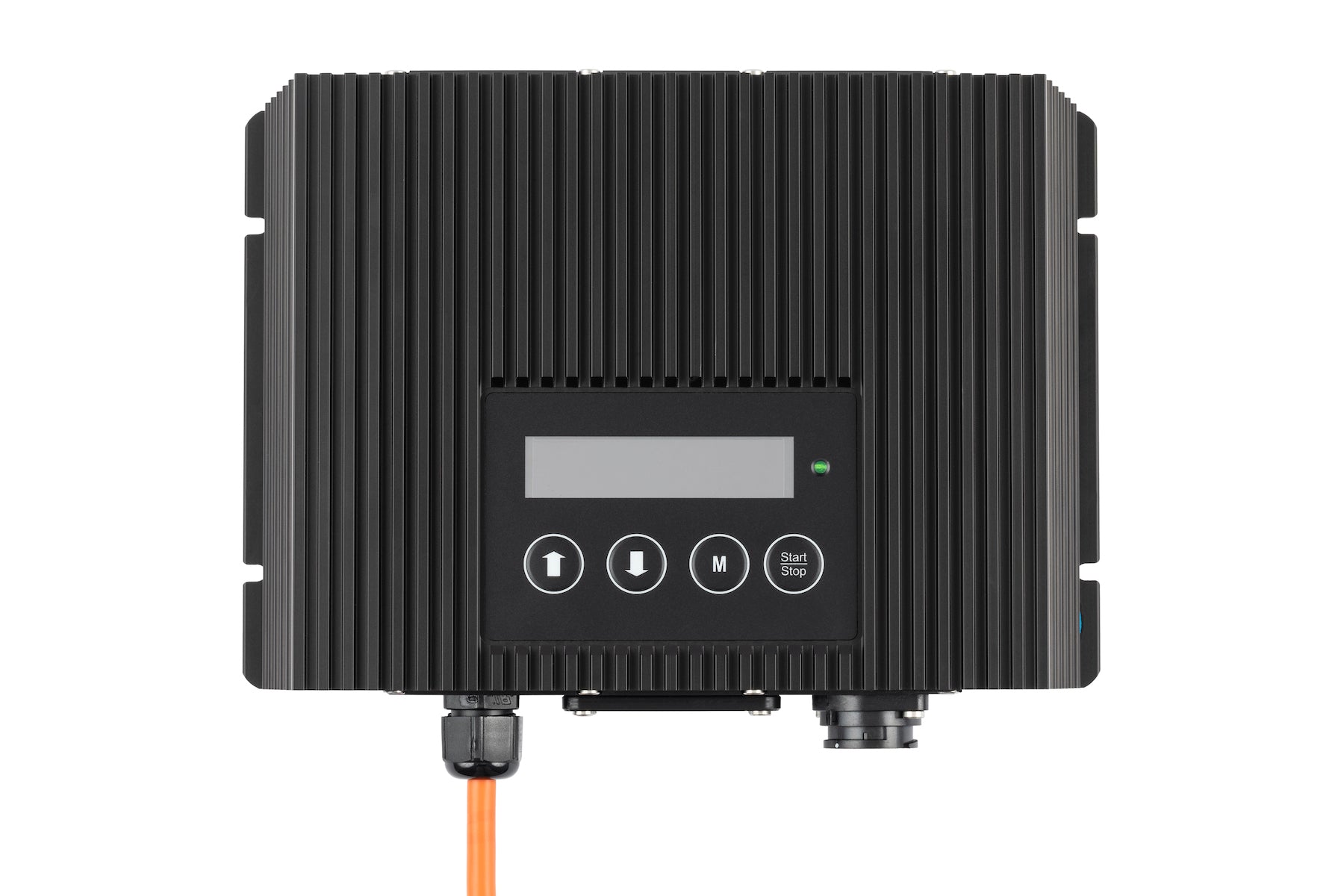

• Abyzz AFC150 pump and IPU driver (splashwaterproof)
• Power cable and connection cable
