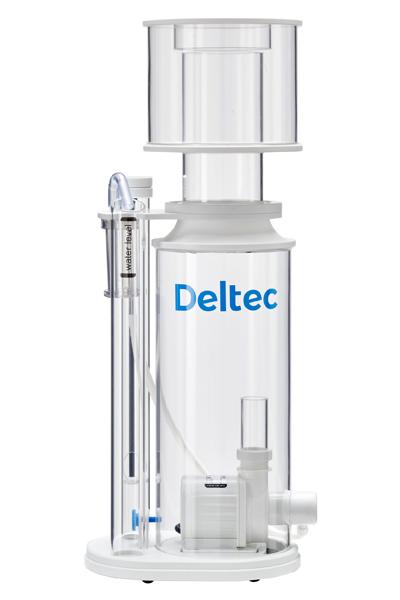

Aquarium size 200 to 600 litres

Deltec have been a market leader in specialist marine equipment for over 25 years.

These new internal protein skimmers continue their long history of German hand built, high efficiency protein skimmers. They have used their experience to introduce many innovations in skimmer technology over the years, pushing the boundaries of performance and efficiency.

PRODUCT FEATURES:

• Highly efficient cylinder shape
• Emergency overflow with water level indicator
• Hollow footplate design
• Extremely low power consumption
• Whisper quiet operation
• Micro water level adjuster
• Toolless maintenance
• Quick and easy pump removal
• Pump feed / pause button
• Hand built in Germany

HOLLOW FOOTPLATE DESIGN
The footplate design offers a new methodology to water flow within the skimmer, giving better contact time between the air/water mixture without increasing the overall height of the skimmer. This also reduces the chance of micro bubbles escaping into the aquarium and reduces turbulence and noise within the skimmer body.

EMERGENCY OVERFLOW SYSTEM
The innovative safety overflow feature introduced by Deltec automatically shuts off the air input if the water level inside the skimmer rises, preventing the skimmer cup from flooding.

WHISPER QUIET OPERATION
Every skimmer is fitted with an air silencer to reduce noise produced by air being drawn into the protein skimmer and along with the high-performance pump these skimmers operate with very minimal noise.

TOOLLESS ASSEMBLY / DISASSEMBLY
Due to waste accumulation and calcium carbonate build up protein skimmer pumps generally have to perform in a harsh environment and need to be cleaned periodically to maintain peak performance. With this in mind, Deltec has incorporated a quick tool-less removal system for the pump allowing for easy disassembly, in tests Deltec has been able to remove a pump for cleaning in less than 20 seconds meaning less time spent maintaining equipment and more time to enjoy your aquarium.

SPECIFICATIONS

• Aquarium size 200 to 600 liters
• Dimensions (LxWxH) 22 x 14 x 51 cm
• Deltec DCC2 24V DC pump

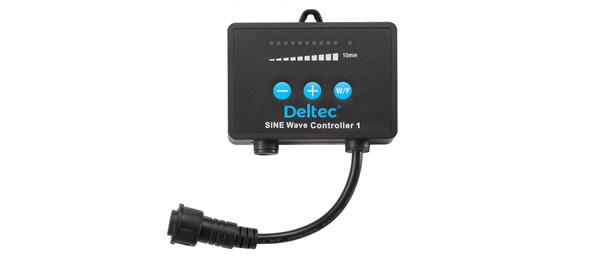

• 10 stage pump controller
• 125mm body diameter
• 76mm neck diameter
• Power consumption 9-21 watts
• Maximum 900 lph air intake
• For sumps with 15 - 25 cm water depth

• Optional CSM600 Manual Cleaning Head available

DELTEC 600i SKIMMER INSTRUCTION MANUAL
