Made in Germany, built to perform

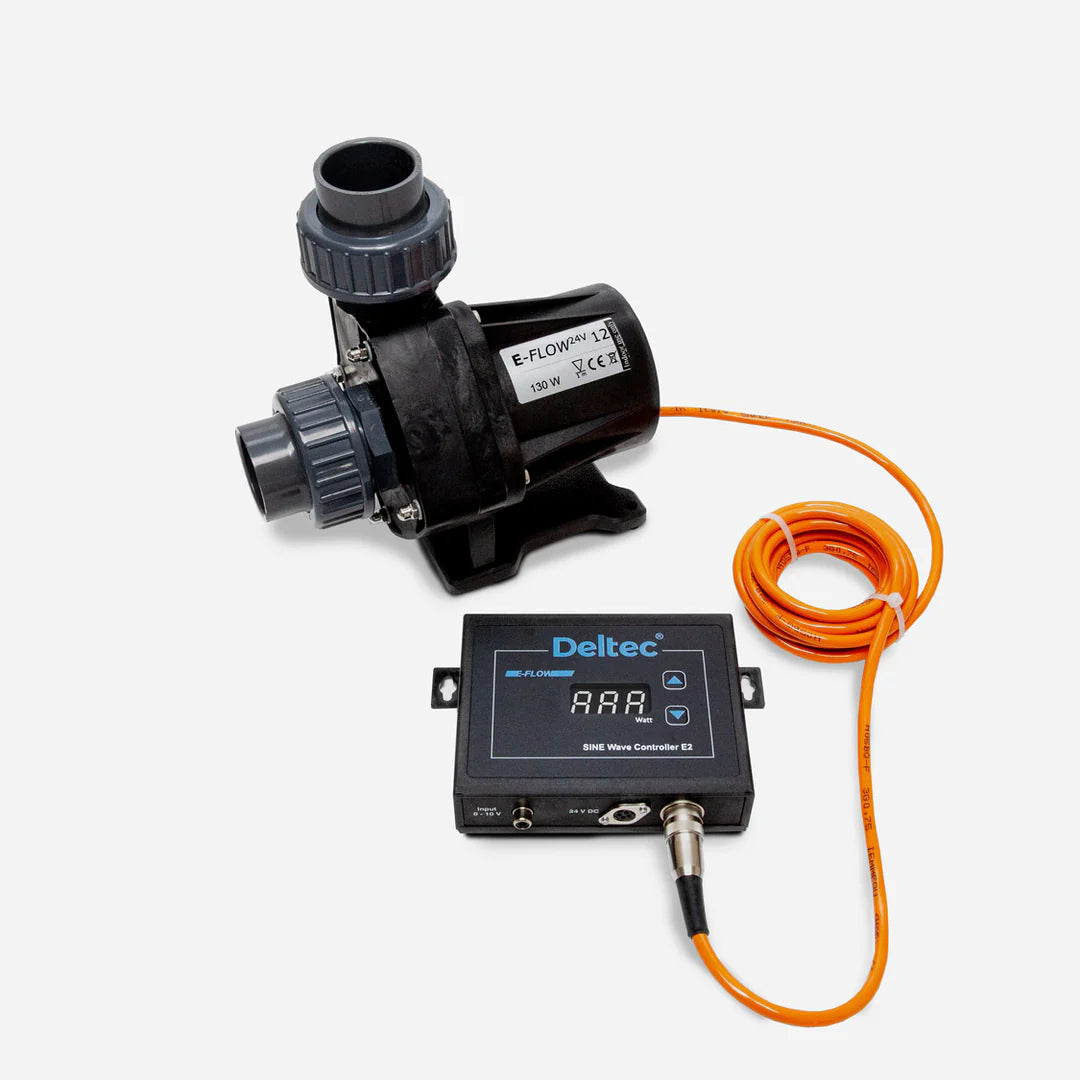

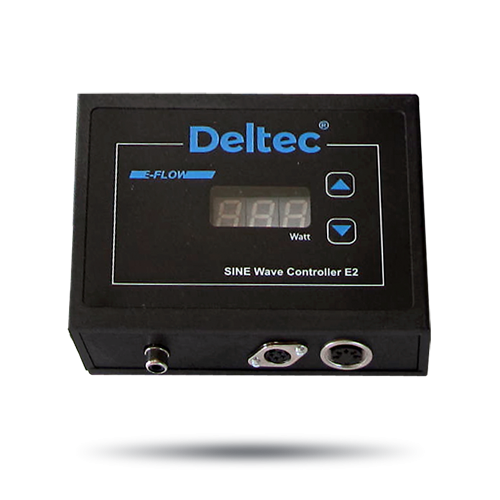

Deltec's flag ship series of true sine wave 24 volt pumps driven by brushless motors. The included controller can set power consumption and performance via a wattage display. The pump can either be installed inside or outside a sump. The new E-flow Pumps provide a high flow rate and pressure at low power consumption and are almost silent in operation.

Features

• Highly efficient pump
• Safe low voltage operation
• Whisper quiet operation due sine wave technology
• Suitable for freshwater and saltwater
• Fully submersible pump
• High efficiency and low power consumption
• Output adjustable electronically in 13-Stages - down to 20W
• 0 – 10V Interface

Technical data

• Volume max at 1.1 meters: 11,800 l/hr
• Water head max: 8.5 meters
• Performance selection: 13 stages
• Voltage: 24v
• Weight: 3.6 kg
• Pump dimensions: 200mm x 135mm x 214 mm (LxWxH)
• Controller dimensions: 190mm x 215mm x 65 mm (LxWxH)

Connections

• Inlet/Suction: 40 mm
• Outlet/Pressure: 40 mm

Power Consumption

• 20-130W
