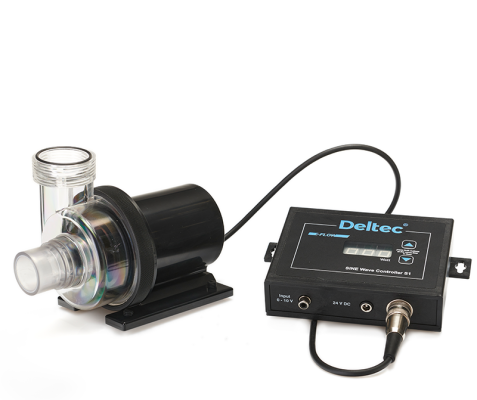

Deltec E-Flow 8 Pump 24V DC

Made in Germany, built to perform

Deltec's flag ship series of true sine wave 24 volt pumps driven by brushless motors. The included controller can set power consumption and performance via a wattage display. The pump can either be installed inside or outside a sump. The new E-flow Pumps provide a high flow rate and pressure at low power consumption and are almost silent in operation.

Features

• Highly efficient pump
• Safe low voltage operation
• Whisper quiet operation due sine wave technology
• Suitable for freshwater and saltwater
• Fully submersible pump
• High efficiency and low power consumption
• Adjustable from 0 watts to 50 watts in 5 watt steps
• 0 – 10V Interface

Technical data:

• Volume max at 8000 l/hr
• Water head max: 4.0 meters
• Performance selection: 5 Watt stages
• Voltage: 24v
• Weight: 1.1 kg
• Pump dimensions: 186mm x 100mm x 152 mm (LxWxH)
• Controller: SWC E1

Connections:

• Inlet/Suction: 32 mm
• Outlet/Pressure: 32 mm

Power Consumption:

• 5-50W
