Evolution Aqua Nexus Auto Cleaning Systems

Evolution Aqua Nexus Automatic Cleaning System

Fully Automated Cleaning – Cleaner Water, Less Effort

The Nexus Automatic Cleaning System takes the hassle out of maintaining your Evolution Aqua Nexus 220 or 320 filters by automating the entire cleaning cycle. Whether your system is gravity-fed or pump-fed, this smart upgrade means no more manually switching pumps, opening valves, or handling dirty filter media. Just set it and forget it—your filter stays in peak condition with minimal effort.

Key Features

• Automates all cleaning functions of your Nexus 220 or 320 (models from 2006 onwards)
• Compatible with gravity-fed and pump-fed pond setups
• Timed cleaning cycles – factory-set to run every 3 days (fully adjustable)
• Manual clean button for on-demand cleaning
• Fully integrated with the Nexus+ range, which includes pre-installed mounting fixings
• Each cleaning cycle takes only 10 minutes
• Helps maintain optimal filter performance and water clarity
• Saves time and reduces maintenance effort

Water Change & Turnover Guidance

To maintain healthy water quality in your pond, it is generally recommended to change 10% of the pond volume weekly. With this in mind, we recommend setting the Nexus Automatic Cleaning System to run in line with this schedule, so each cleaning cycle also helps perform a water exchange.

In addition, maintaining a good pond turnover rate is essential for efficient biological filtration. Ideally, the total volume of your pond should pass through your filter every 2 to 3 hours. The Nexus Automatic System helps support consistent flow and optimal bio-filtration by keeping your filter media clean and unobstructed.

How It Works

Once installed and connected to power, the system automates a full cleaning cycle using a smart control box and integrated components. It monitors time intervals and handles all functions hands-free, either on schedule or at the push of a button.

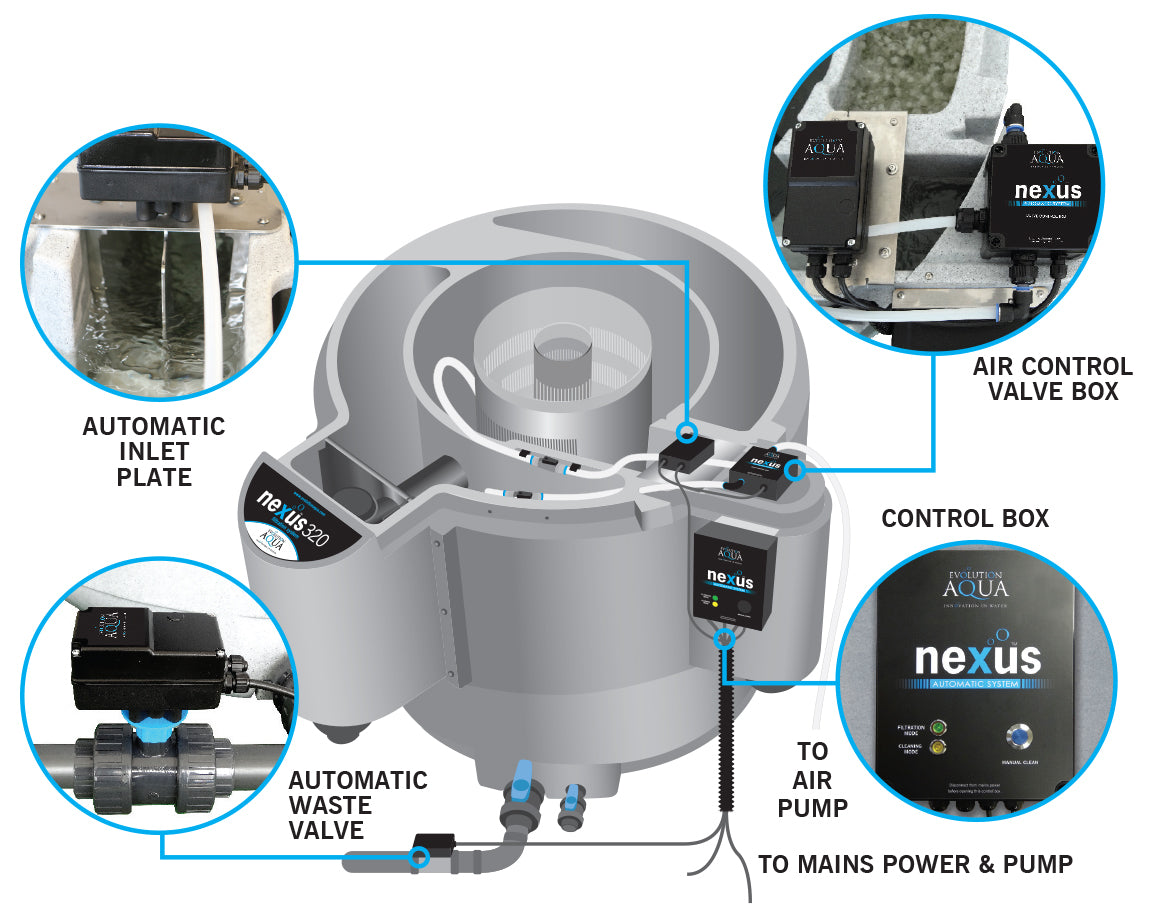

Gravity-Fed Setup Cleaning Cycle:

1. Timer initiates the cycle
2. Circulating pump turns off
3. Inlet slide valve closes; air is redirected to EAZY chamber
4. Media is agitated to dislodge waste
5. Waste valve opens, draining dirty water
6. Final rinse occurs before valves reset
7. Filtration resumes

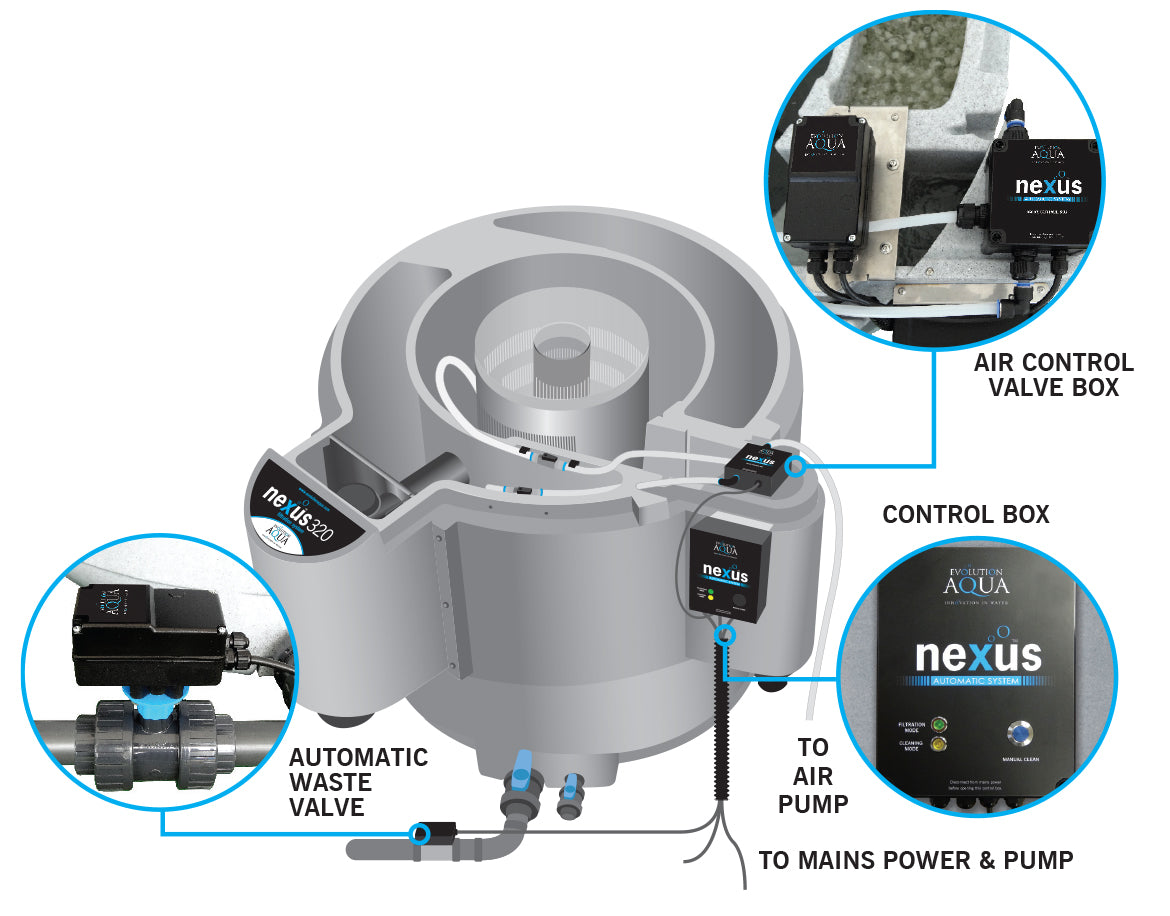

Pump-Fed Setup Cleaning Cycle:

1. Timer activates cleaning sequence
2. Circulation pump turns off
3. Air redirects to the EAZY chamber
4. Filter media is cleaned and waste is drained
5. Air returns to the bio-chamber
6. Pump restarts and system resumes filtration

What’s Included

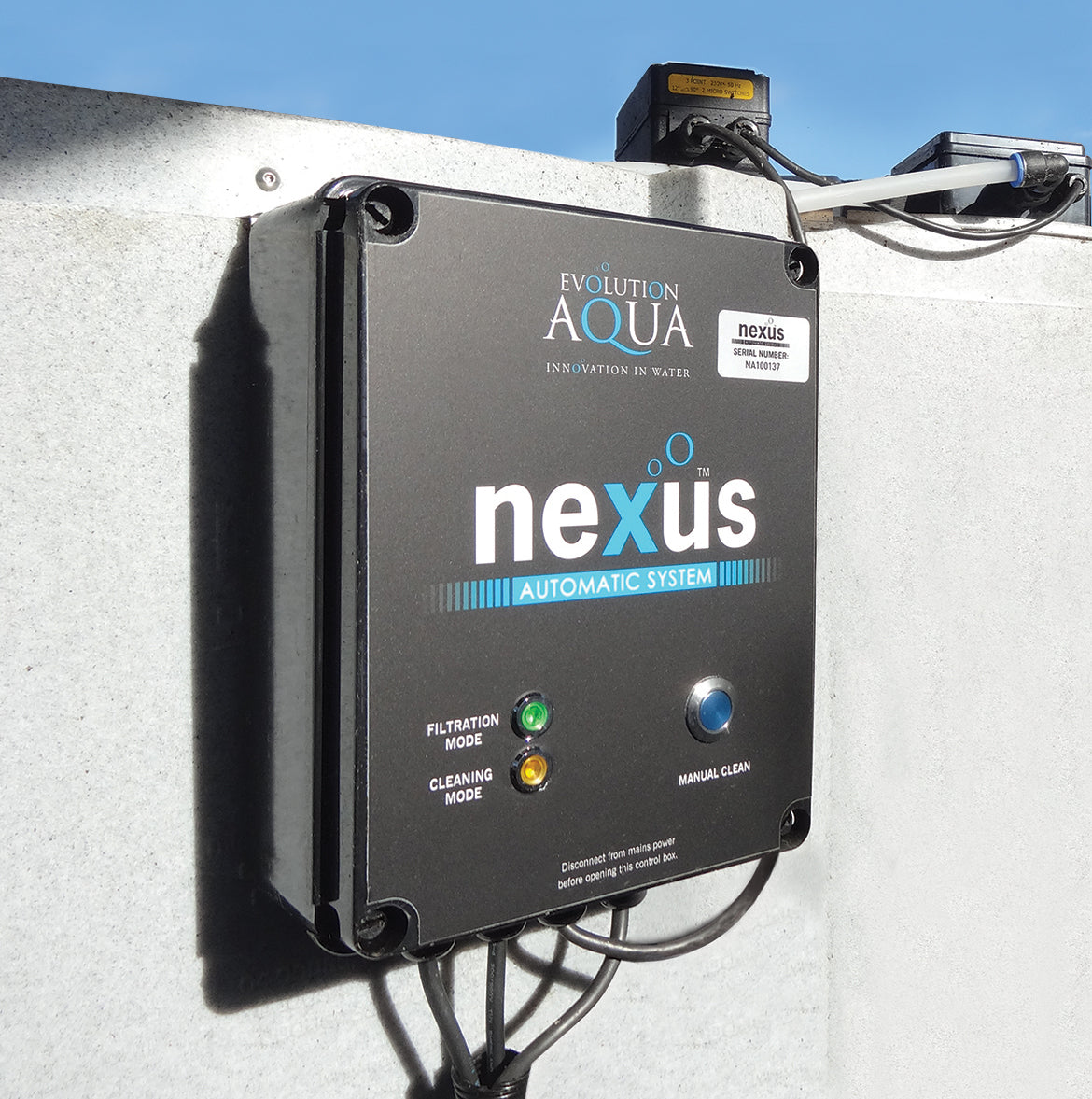

• Electronic control box with adjustable timer
• Automated waste valve
• Air pump control interface
• Automatic inlet slide valve (for gravity-fed setups)
• Complete connection kit and installation instructions

Make Pond Maintenance Effortless

With the Nexus Automatic System, your filter is always cleaned efficiently—protecting water quality, preserving beneficial bacteria, and enhancing the overall performance of your pond. It’s the perfect upgrade for busy fishkeepers who want crystal-clear water with less work.
