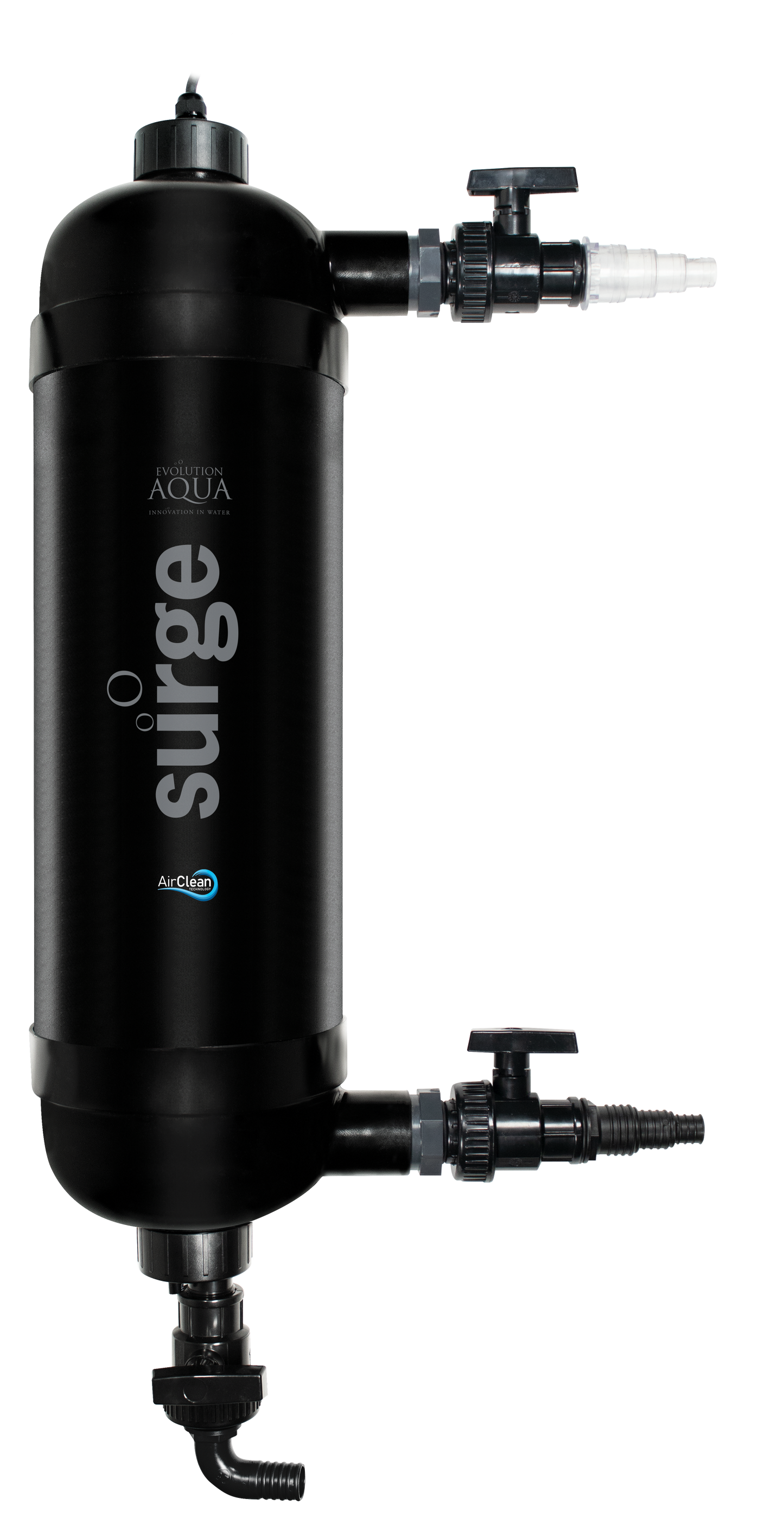

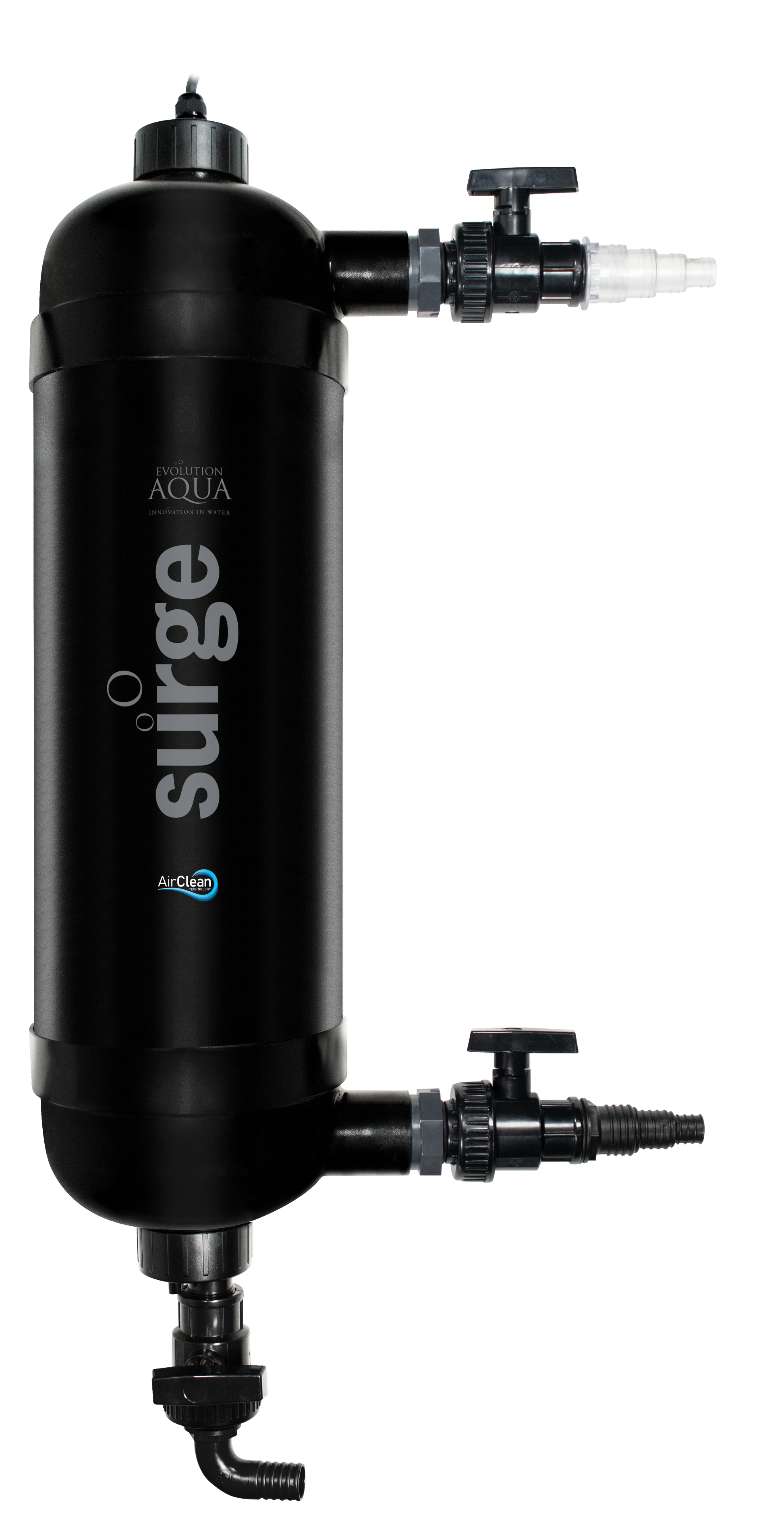

Evolution Aqua Surge Filter with 18W UV

Evolution Aqua Surge Filter with UV

Compact, Powerful Filtration with Built-In UVC and Patented Cleaning Technology

The Evolution Aqua Surge Filter with UV is a compact yet highly effective filtration solution for ponds up to 5,000 litres. Designed with innovation in mind, it offers powerful mechanical and biological filtration without the hassle of sponge cleaning—keeping your hands dry and your pond sparkling clean.

At its core is K+Media, a high-performance filtration media that traps debris and provides a vast surface area for beneficial bacteria to thrive. The built-in UV clarifier enhances water clarity by eradicating green water algae, ensuring a crystal-clear pond.

Key Features

• Integrated UV Clarifier to eliminate green water and improve clarity
• No sponges or foams – no messy cleaning or frequent maintenance
• Patented Air Clean Technology – fast and effective self-cleaning system
• Compact footprint – ideal for smaller pond setups (up to 5,000L)
• K+Media provides superior mechanical and biological filtration
• Quick and simple installation
• Durable construction for long-term reliability
• Energy-efficient and low-maintenance design

How the Surge Filter Works

As pond water is pumped into the Surge Filter, it passes through the chamber filled with open-structured K+Media, which captures suspended waste and debris. During regular operation, this media acts as a barrier, mechanically filtering particles while supporting bio-filtration.

When it's time to clean, simply engage the Air Clean Technology:

1. Turn off the pump
2. Close the inlet and outlet ball valves
3. Open the waste valve

This triggers a patented air syphon mechanism that draws air into the filter. The air and remaining water agitate the K+Media, dislodging debris, which is then flushed out through the waste outlet—leaving your media clean and ready to go.
